Exhaust Manifold Header for 1997-2014 Chevy Small Block Chevrolet V8 Ls1/Ls2/Ls3/Ls6/LSX

Exhaust Manifold Header for 1997-2014 Chevy Small Block Chevrolet V8 Ls1/Ls2/Ls3/Ls6/LSX

Regular price $189.99 USD
Regular price Sale price $189.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Material: T304 Stainless Steel
  • Color: Metallic
  • Surface Finish: Chrome Polished
  • Header Spec: 2x 4-1 Design. Weld-On
  • Pipe Spec: 1 Piece Construction on each header. These headers are meant to either be forward mounted as part of a turbocharger system or for Off-Road Trucks, Buggies or Boats. The design will put the headers collector flange into the factory firewall if mounted rearward. Where the primary tubes meet the collector is even with the back of the engine block. The collector extends back an additional 6.75"
  • Inlet/Outlet: 1.76" OD/2.89" ID
  • Sensor: N/A
  • Wall Thickness: 3/8" Flange / 16-Gauge Piping Walls
  • Headers are made with high quality stainless steel , Mandrel bent tubing, CNC Machined Flanges.
  • Increase Horsepower and Torque. Gain More performance Due to More Air Flow
  • Better fuel mileage with improved combustion


For 1997-2014 Small Block SBC LS1, LS2, LS3, LS4, LS6, LSX V8 engines

Remark: Compatability chart is for reference item is not direct fit

Installation: Exhaust fabrication/Welding is required

All exhaust and suspension products are deemed for "off-road use only"- please check local laws regarding the modification of the exhaust systems by checking the vehicle code for your state. Many states are more stringent on exhaust modification laws and to pass SMOG. Please check your local laws.

All exhaust system components will alter and affect the vehicle's overall sound in pitch and volume. All to which is subjective in manner. we will not claim responsibility and/or accept returns based on an individual's personal preference.

Product Content:

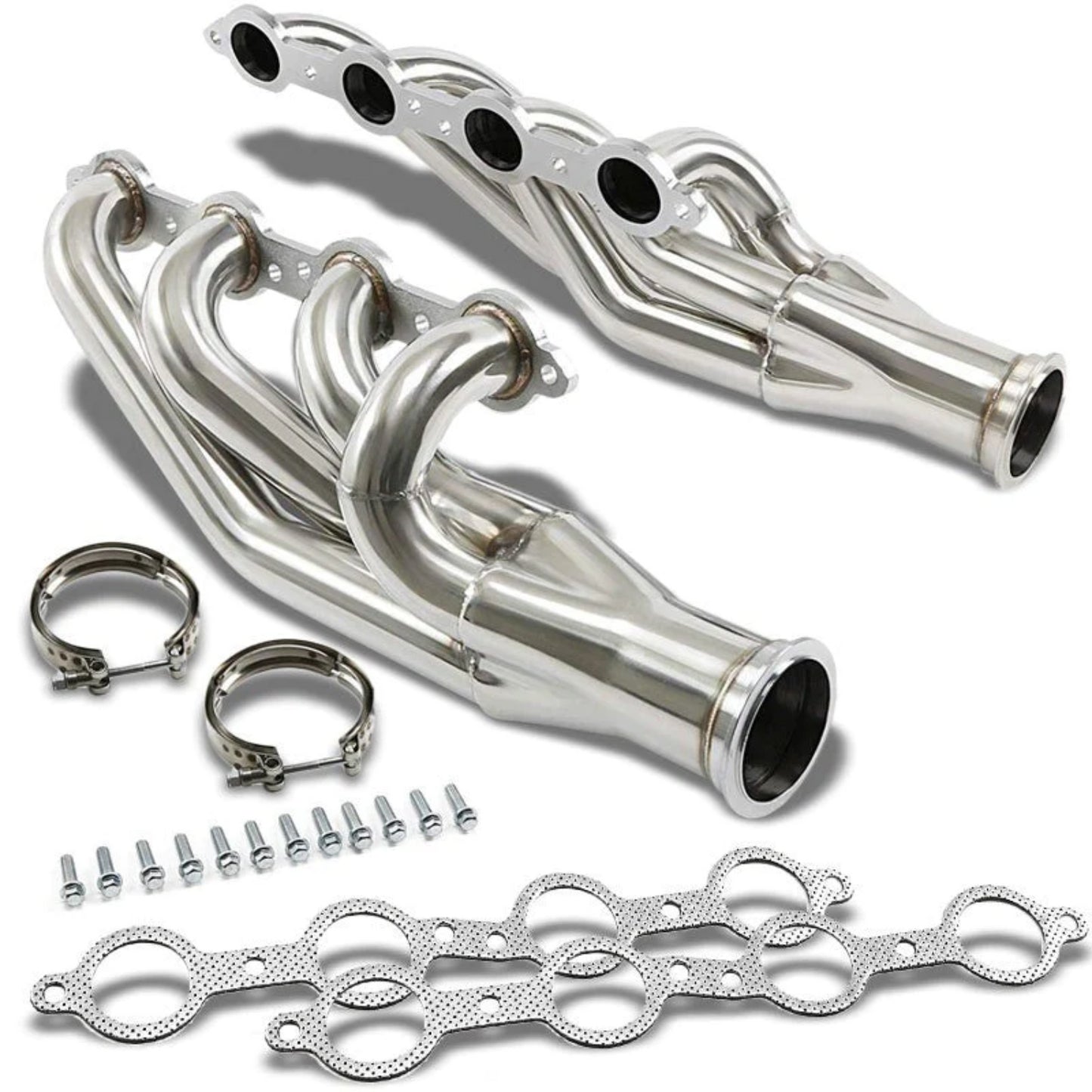

  • 1 Pair x Exhaust Header Manifold Kit (Left & Right)
    Hardware if any is shown in the picture above

Cross Reference Number:


The product does not come with manual/instruction, Professional Install Recommended
